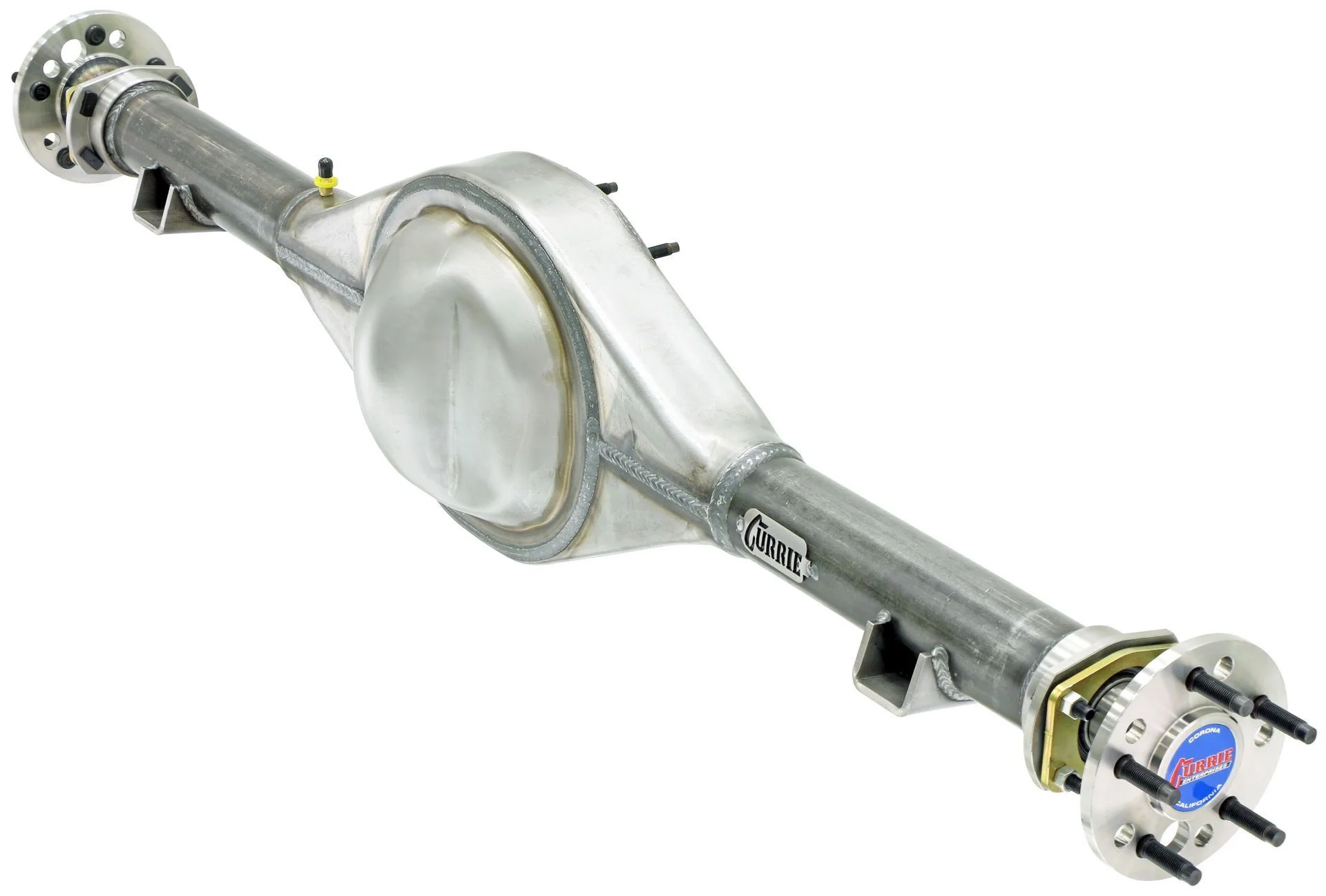

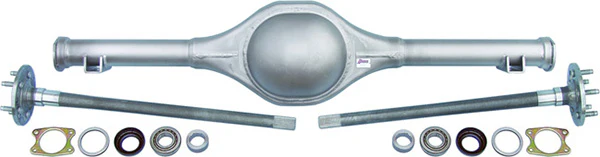

1955-57 Chevy Belair Ford 9" Rear End Housing and Axles - Narrowed
Features the 9-Plus heavy duty housing and 31 spline performance axle package built to 57" WMS (Wheel Mount Surface). of the vehicle. Heavy duty 2” wide leaf spring pads are installed at 38.25" center to center to be used with at leaf spring re-location kit (see related items). Housing includes all 3rd. member studs installed and the Torino style late model large bearing housing ends. Axles include the stock 5 on 4 3/4” wheel bolt pattern drilled in them and 7/16" wheel studs installed, ¼” thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.
This unit will allow for the use of any ABCS brake kit including the 11” drum brakes, 11” Ford Explorer disc brakes, POL Ford 9" Disc Brakes & Wilwood disc brakes.
Features the 9-Plus heavy duty housing and 31 spline performance axle package built to 57" WMS (Wheel Mount Surface). of the vehicle. Heavy duty 2” wide leaf spring pads are installed at 38.25" center to center to be used with at leaf spring re-location kit (see related items). Housing includes all 3rd. member studs installed and the Torino style late model large bearing housing ends. Axles include the stock 5 on 4 3/4” wheel bolt pattern drilled in them and 7/16" wheel studs installed, ¼” thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.
This unit will allow for the use of any ABCS brake kit including the 11” drum brakes, 11” Ford Explorer disc brakes, POL Ford 9" Disc Brakes & Wilwood disc brakes.
Original: $1,550.00
-65%$1,550.00
$542.50Description
Features the 9-Plus heavy duty housing and 31 spline performance axle package built to 57" WMS (Wheel Mount Surface). of the vehicle. Heavy duty 2” wide leaf spring pads are installed at 38.25" center to center to be used with at leaf spring re-location kit (see related items). Housing includes all 3rd. member studs installed and the Torino style late model large bearing housing ends. Axles include the stock 5 on 4 3/4” wheel bolt pattern drilled in them and 7/16" wheel studs installed, ¼” thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.
This unit will allow for the use of any ABCS brake kit including the 11” drum brakes, 11” Ford Explorer disc brakes, POL Ford 9" Disc Brakes & Wilwood disc brakes.
